Description
Room sensor with VOC measuring element for measuring indoor air quality. VOC (Volatile Organic Compounds) are the air pollutants of volatile organic substances in the air.
With integrated temperature and humidity sensor for measuring temperature and humidity as well as the possibility of visual and acoustic indication of exceeded, predefined value of the air quality.
By using additional temperature sensors, measuring errors can be avoided. Possible causes: own heating of the electronics used in a group unit, draught air, direct sun radiation, cold outside walls…
- Measuring range VOC measuring element index 0 …500
- Measuring range temperature -40 …+125 °C
- Measuring range humidity 0 …100 % r.h.
- Input of limit values for visual and acoustic indication when the predefined value of the air quality is exceeded
- Controlling, programming and feedback is effected via the F-bus (2-wire)
- Automatic parameter transfer after address assignment
- Extended diagnostic options, error statistics, reporting and display of device data
- Firmware update possible during operation via F-bus
- Up to 32 participants per line
- Own data point bar (analog/digital) for each participant
- Fast data update through event-oriented communication

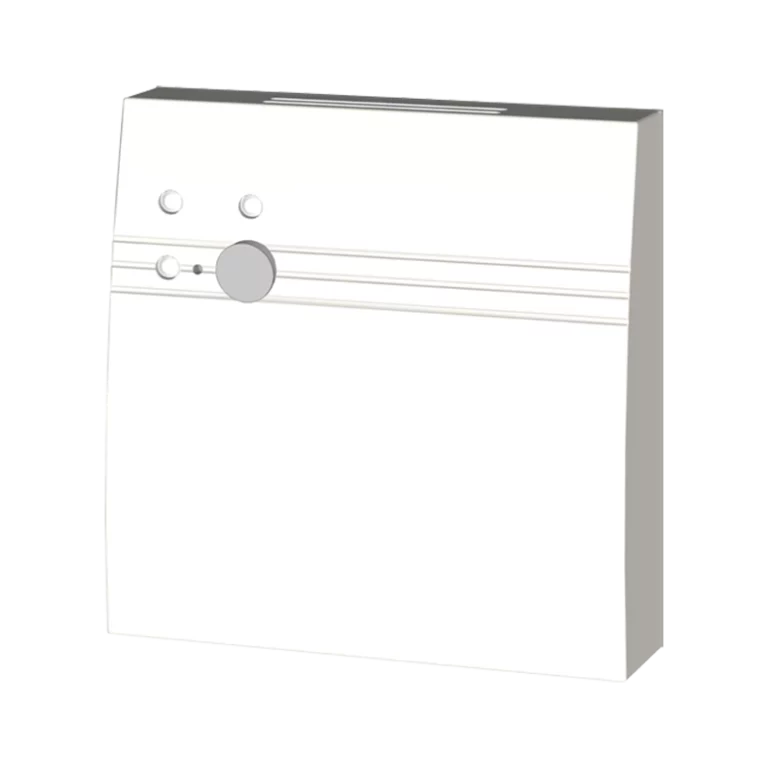

Plastic housing for wall mounting.
