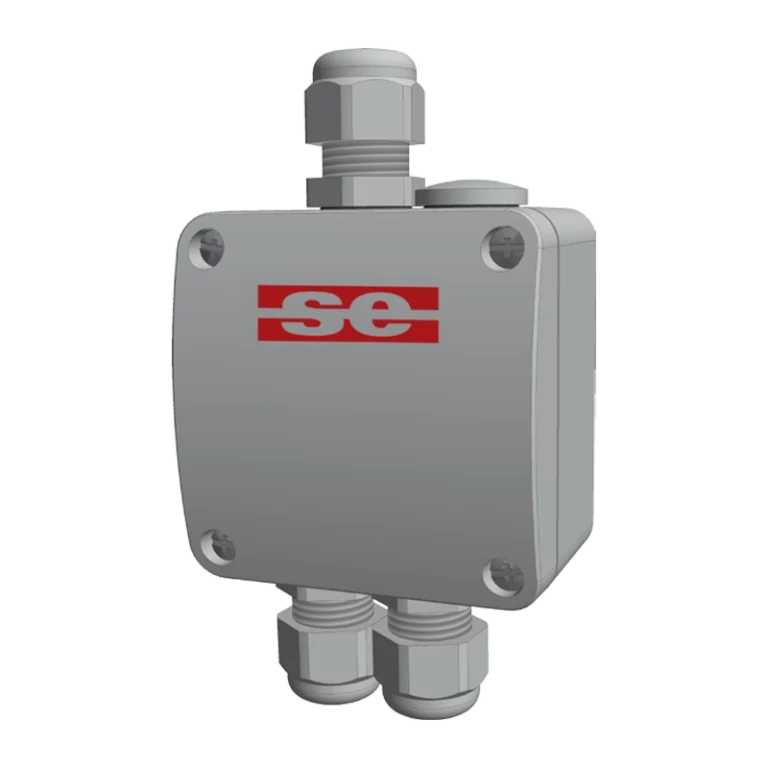

Universal I/O module for connecting sensors and actuators.
Universal I/O module for connecting sensors and actuators. Communication via F-bus and Modbus.
Plastic housing for wall and ceiling mounting.
| Voltage supply/Spannungsversorgung | AC 24 V ± 10 %, 50 …60 Hz, DC 24 V ± 20 % |
|---|---|
| Max. power consumption/Leistungsaufnahme | AC 3.0 VA, DC 1.5 W |
| Bus load | 6 mA (F-bus) |
| Dimensions (without screw connections) | 67.0 Ă— 67.0 Ă— 43.5 (length Ă— width Ă— height (installation depth) in mm) |
| Dimensions (with screw connections) | 67.0 Ă— 117.0 Ă— 43.5 (length Ă— width Ă— height (installation depth) in mm) |
| Operation temperature/Einsatztemperatur | -20 …+50 °C |
| Weight/Gewicht | 120 g |
| Protection/Schutzart | IP65 |
| Housing/Gehäuse | plastic ASA, light grey RAL 7035 |
Thanks to our competence in the development of electronic components, the function and design of OEM products can be adjusted to your needs individually. Direct cooperation with our production and its knowledge in plastics processing, equipment and assembly enables customised solutions for you: from customer-specific labels to individual product housings, to special cable lengths.
