Description
Room sensor with CO2 measuring element for monitoring air quality by continuous CO2 measurement using the measuring principle of PASens® technology (based on photoacoustic sensor principle).
With integrated temperature and humidity sensor for measuring temperature and humidity as well as the possibility of visual and acoustic indication when the CO2 value is exceeded, self-calibrating.
By using additional temperature sensors, measuring errors can be avoided. Possible causes: own heating of the electronics used in a group unit, draught air, direct sun radiation, cold outside walls…
- Measuring range CO2 measuring element 400 …2000 ppm CO2
- Measuring range temperature -10 …+60 °C
- Measuring range humidity 0 …100 % r.h.
- Self- or manual calibration for CO2
- Input of limit values for visual and acoustic indication when the measured CO2 value is exceeded
- Controlling, programming and feedback is effected via the F-bus (2-wire)
- Automatic parameter transfer after address assignment
- Extended diagnostic options, error statistics, reporting and display of device data
- Firmware update possible during operation via F-bus
- Up to 32 participants per line
- Own data point bar (analog/digital) for each participant
- Fast data update through event-oriented communication

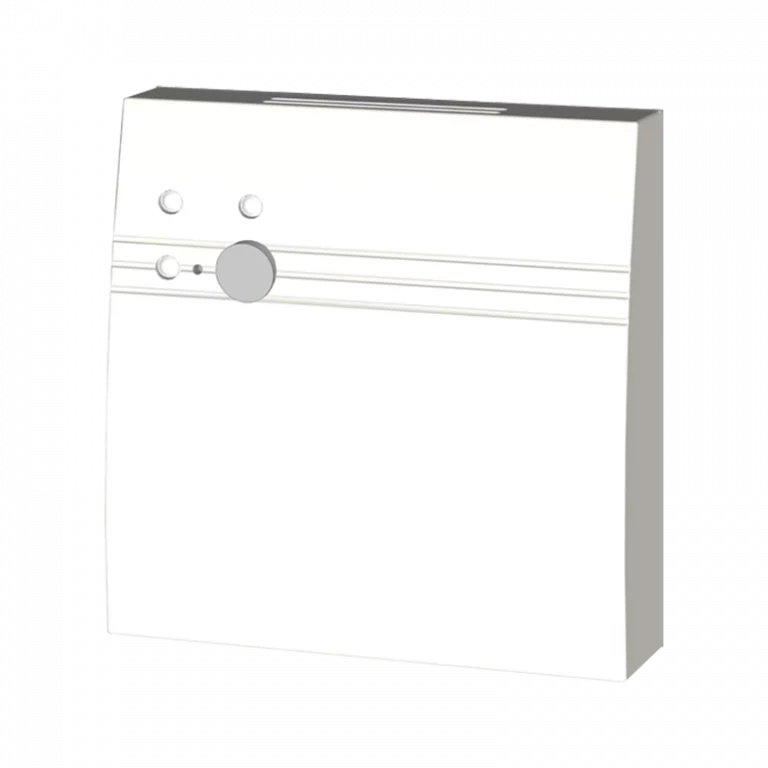

Plastic housing for wall mounting.
