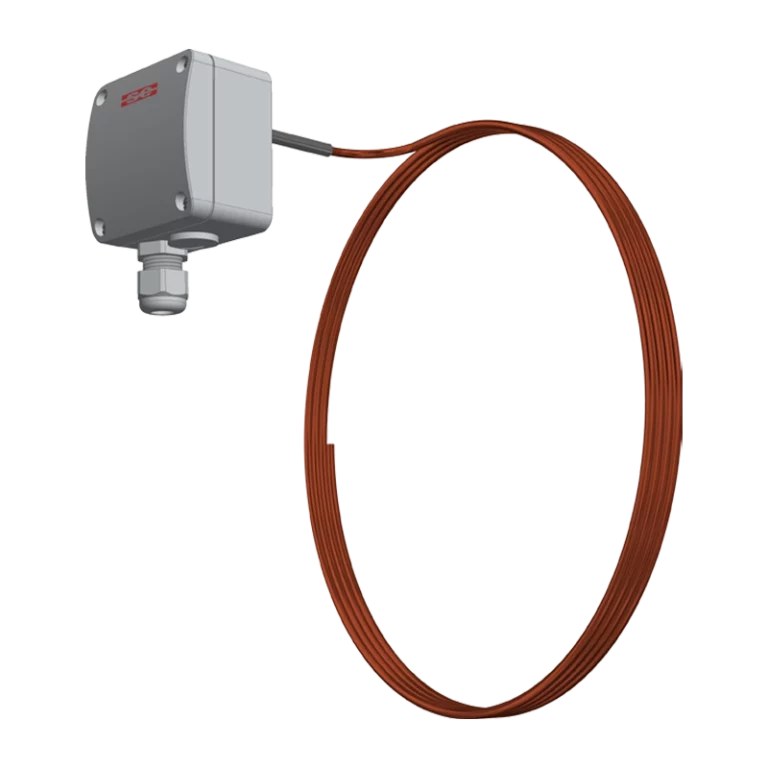

Duct temperature sensor for average value calculation, F-device

Model nr: F-SKT-MW 3M

Averaging duct sensor for precise temperature profiling across ventilation channels
3 m copper sensor winding with optional extended lengths for large ducts
F-bus powered with fast event-driven updates and adjustable measurement settings
Fully customizable

Duct sensor with temperature sensor for calculation the average value in a channel.

Share this product

Description
Additional information

Description

Duct sensor with temperature sensor for calculation the average value in a channel.

Measuring range temperature sensor Pt1000/B -30 …+80 °C
Sensor Pt1000/B
Continuous measuring winding (length 3.0 m) installed in copper pipe Cu pipe DM 4 mm
Special lengths on request (6.0 m/10.0 m)
Adjustable parameters: offset, attenuation, resolution …
1× screw connection M16
1× blind plug M16
Fast data update through event-oriented communication
Power supply via F-bus (2-wire), no extra power supply required
Control, programming and feedback is effected via the F-bus (2-wire)

Solid plastic housing for mounting in ventilation ducts of room-technical systems.

Additional information

Measuring range temperature	-30 …+80 °C
Dimensions measuring rod	4.0 × 3.0 (diameter in mm × length in m)
Dimensions neck tube	Ø6.0 × 60.0 (diameter × length in mm)
Voltage supply/Spannungsversorgung	via F-bus
Bus load	14 mA (F-bus)
Dimensions without screw connections and measuring element	67.0 × 67.0 × 43.5 (length × width × height (installation depth) in mm)
Dimensions with screw connections and measuring element	67.0 × 92.0 × 102.5 (length × width × height (installation depth) in mm)
Operation temperature/Einsatztemperatur	-30 …+80 °C
Weight/Gewicht	260 g
Protection/Schutzart	IP65
Housing/Gehäuse	plastic ASA, light grey RAL 7035

Looking for customized solutions?

Thanks to our competence in the development of electronic components, the function and design of OEM products can be adjusted to your needs individually. Direct cooperation with our production and its knowledge in plastics processing, equipment and assembly enables customised solutions for you: from customer-specific labels to individual product housings, to special cable lengths.
