Description

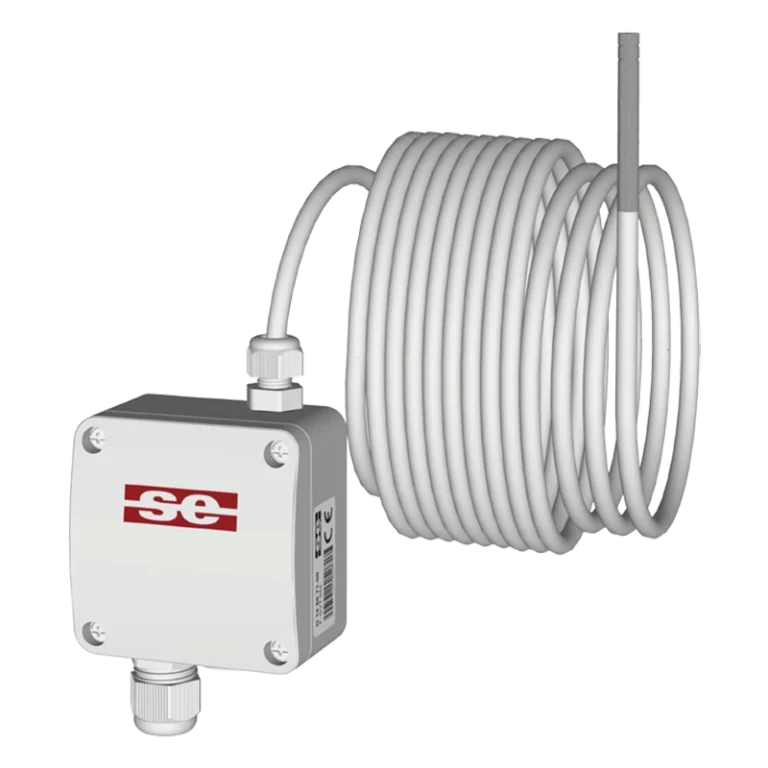

Active temperature sensor for F-bus with 6 m cable length.
- Sensor temperature Pt1000 1/3 DIN B
- 1× screw connection M16
- 1× blind plug M16
- Adjustable parameters: Offset, damping, resolution …
- Monitoring of the sensor (error messages) and the communication (online status)
- Flexible wiring of the fieldbus: star, series or parallel
- Power supply via F-bus (2-wire), no extra power supply required
- Controlling, programming and feedback is effected via the F-bus (2-wire)
- Automatic parameter transfer after address assignment
- Extended diagnostic options, error statistics, reporting and display of device data
- Firmware update possible during operation via F-bus
- Up to 32 participants per line
- Own data point bar (analog/digital) for each participant
- Fast data update through event-oriented communication
Solid plastic housing.
