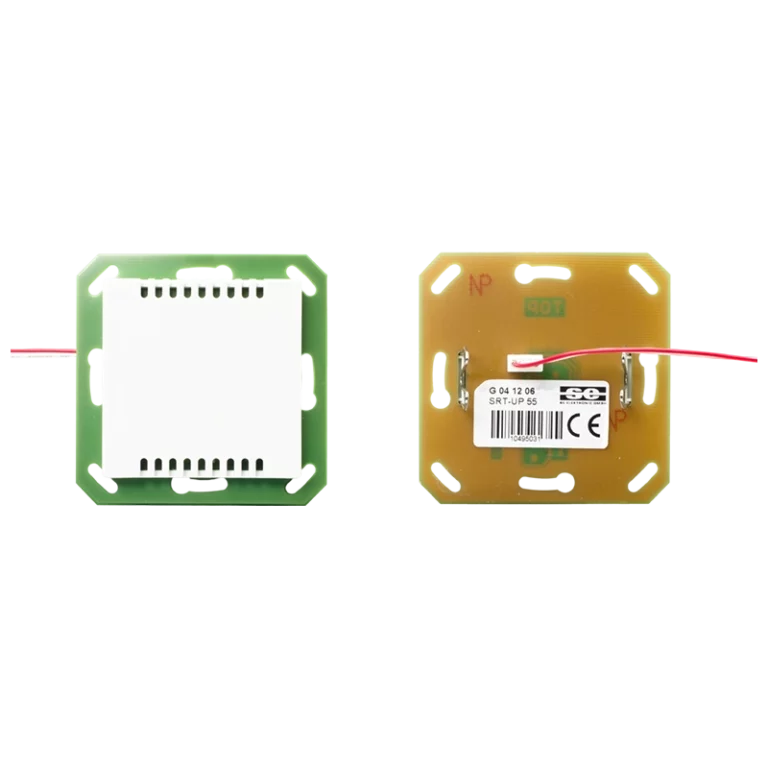

Temperature sensor for flush mounting.
Temperature sensor for flush mounting.
By using additional temperature sensors, measuring errors can be avoided.
Possible causes: own heating of the electronics used in a group unit, draught air, direct sun radiation, cold outside walls…
Can be combined with many switch covers (standard dimension 55) by a wide range of different manufacturers.
Installation and attachment in a flush box Ø 60 mm × 40 mm (installation depth).
| Measuring range | -35 …+70 °C |
|---|---|
| Tolerance | ±0.5 K |
| Dimensions/Maße | 70.8 × 70.8 × 12.0 (length × width × height (installation depth) in mm) |
| Operation temperature/Einsatztemperatur | 0 …+50 °C |
| Weight/Gewicht | 18 g |
| Protection class/Schutzklasse | IP20 |
| Housing/Gehäuse | plastic material, white RAL 9010 |
Thanks to our competence in the development of electronic components, the function and design of OEM products can be adjusted to your needs individually. Direct cooperation with our production and its knowledge in plastics processing, equipment and assembly enables customised solutions for you: from customer-specific labels to individual product housings, to special cable lengths.
