Description

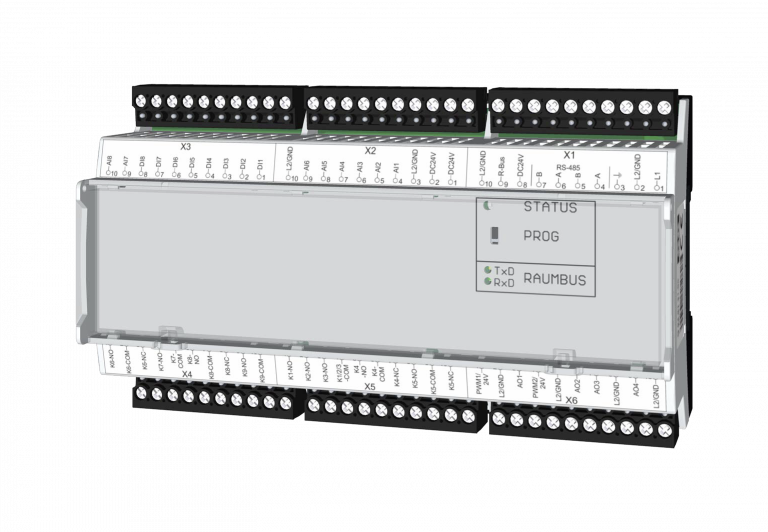

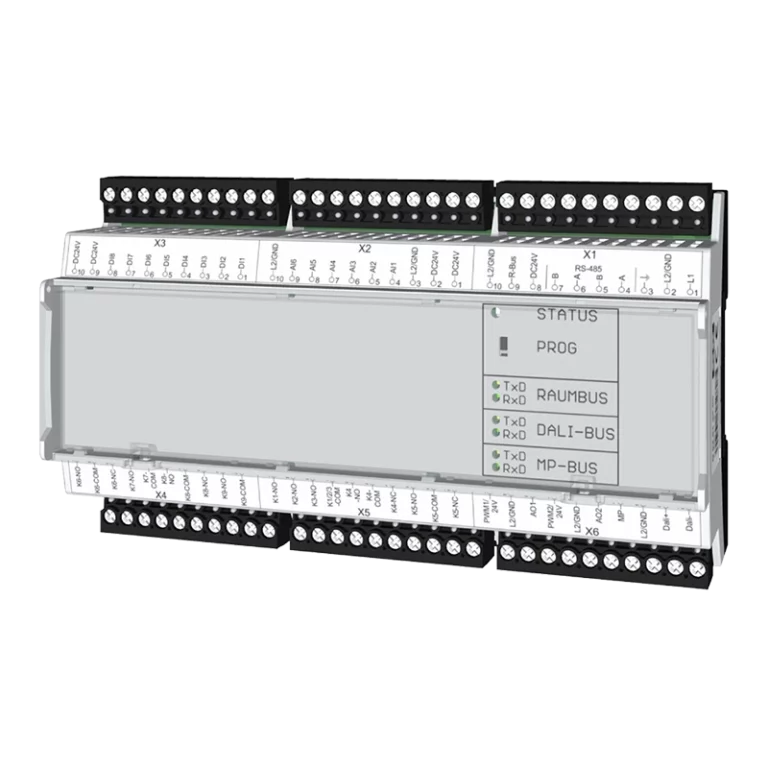

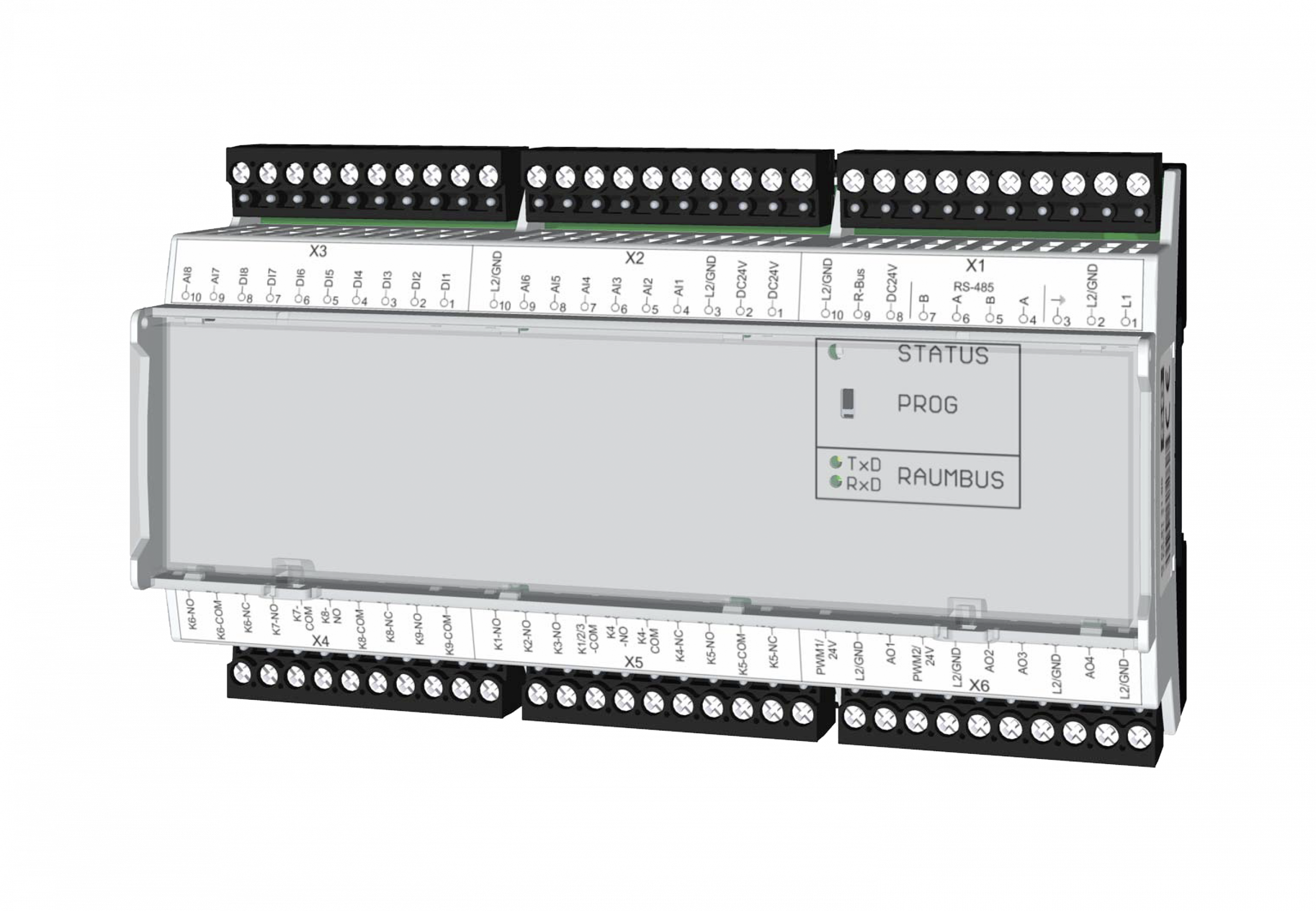

Pluggable multi-I/O module for the connection of sensorics and actuators for individual room regulation.
Communication to the controller via room-bus with simple 2-wire technology. Addressing via automatic module detection. Freely configurable analog or digital inputs and outputs for a wide range of applications for individual room regulation, e.g. control of 3-level fan (fan-coils), heating/cooling valves, optional with change over-functionality, inputs for several types of temperature sensors, frost protection monitor, malfunction and operating messages etc. However, the connection of the lighting technology or shading can also be realized very simple.
According contacts are available directly on the module. All electrical connections on the module are realised with service-friendly connectors for an easy connection of the external field devices.
- 3× digital outputs (relay contact NO with common COM) for a 3-level fan coil control system
- 4× digital outputs (relay contact CO), freely configurable
- 2× digital outputs (relay contact NO), freely configurable
- 4× analog outputs 0-10 V, max. 10 mA, freely configurable
- 2× PWM outputs, parameter settings for 50 or 60 Hz
- 6× analog inputs multifunctional (0-10 V, PT1000, div. NTC, KTY), can be used optionally as digital inputs (with potential)
- 2× analog inputs 0 …10 V (potential free), can be used optionally as digital outputs, freely configurable
- 8× digital inputs (with potential), freely configurable
- 1× 24 V AC voltage supply
- 1× room-bus for connection with controller/control unit
- 1× supporting terminal for RS485 bus-wiring
Plastic housing for top hat rail mounting.
