Description
Module for controlling and monitoring up to two fire dampers via BACnet MS/TP.
Mechanical and electrical fire dampers (BSK) with AC 24 V spring return actuator as well as smoke detectors can be used.
- Module supply external via AC 230 V
- Loop-through of power supply possible due to double terminal points
- Integrated power supply unit for connection of 2 BSK with AC 24 V supply
- 2× relay (normally open) max. 35 V, 6A for BSK
- Related inputs for status indication BSK (OPEN/CLOSED)
- Smoke detector inputs for
– Pollution
– Air flow monitoring
– Alarm message - Visualization of inputs via LED
- Inputs OPEN, CLOSE and ALARM invertible via BACnet
- Test function via integrated push buttons in the module
- Integrated runtime monitoring of the BSK
- Limit value specification of the max. running times for both BSKs
- Fault message for both BSK when runtime is exceeded
- Optical status display of the operating voltage
- PCB terminals with tension spring connection
- 1× USB service interface (type B) for diagnostics, parameterization and maintenance
- Communication BACnet MS/TP via RS485
- BACnet objects for all relevant messages
- Parameterization possible at runtime
- System information can be requested via communication interface (device information, versions, states, errors)
- BACnet profile B-AAC (Advanced Application Controller) according to BACnet standard ISO 16484-5:2012, Rev. 12

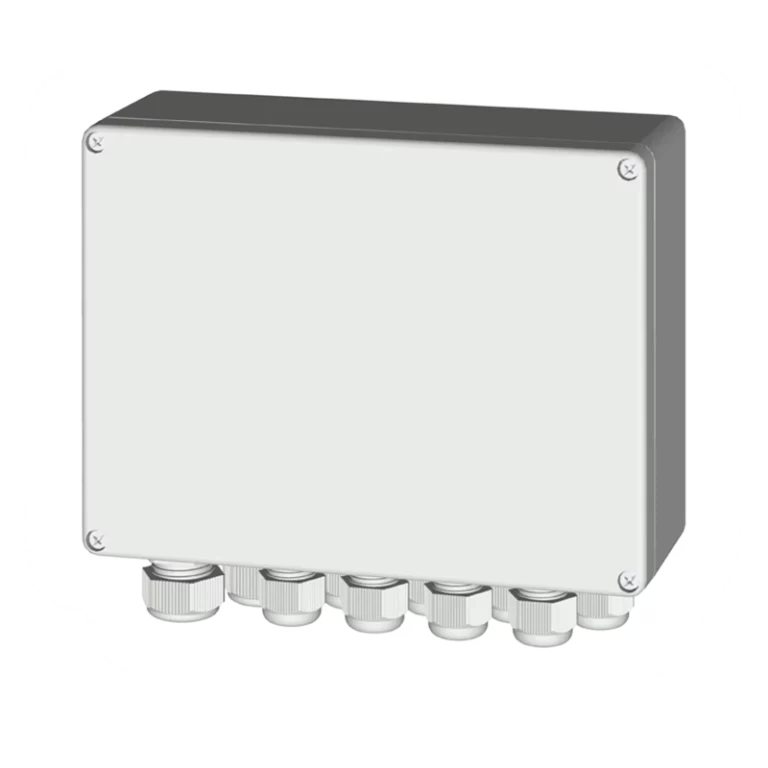

Plastic housing for wall and ceiling mounting.
