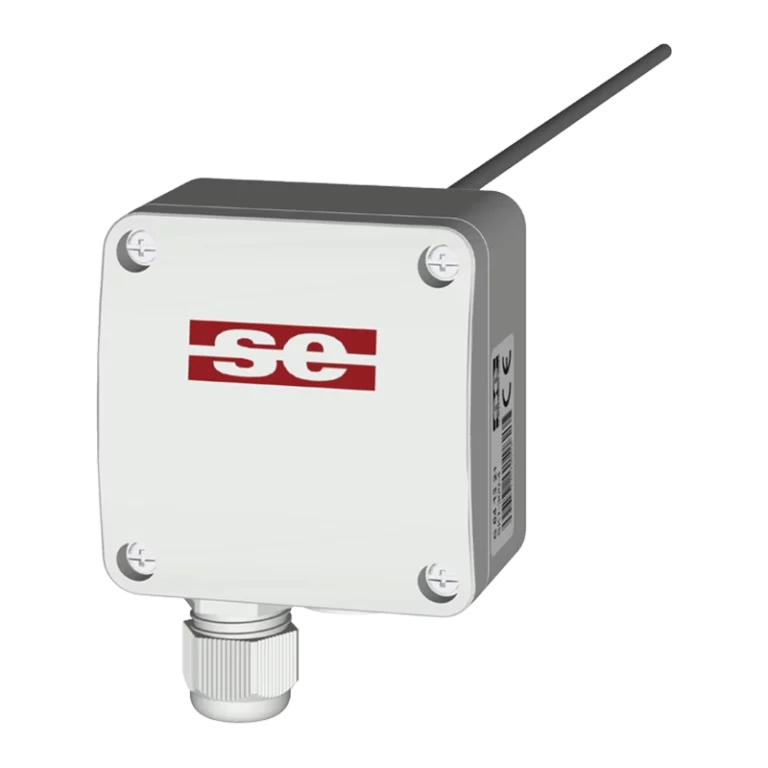

Duct temperature sensor with measuring element in protection tube.
Duct temperature sensor with measuring element in protection tube.
Mounting flange available as accessory.
| Measuring range temperature | -35 …+100 °C |
|---|---|
| Tolerance | ±0.1 K |
| Dimensions sensor sleeve | Ø4.0 × 315.0 (diameter × length in mm) |
| Immersion depth | approx. 300.0 mm |
| Dimensions without screw connections and measuring element | 67.0 × 67.0 × 43.5 (length × width × height (installation depth) in mm) |
| Dimensions with screw connections and measuring element | 67.0 × 92.0 × 358.5 (length × width × height (installation depth) in mm) |
| Operation temperature/Einsatztemperatur | -35 C …+70 °C |
| Weight/Gewicht | 115 g |
| Protection class/Schutzklasse | IP65 |
| Housing/Gehäuse | plastic ASA, light grey RAL 7035 |
Thanks to our competence in the development of electronic components, the function and design of OEM products can be adjusted to your needs individually. Direct cooperation with our production and its knowledge in plastics processing, equipment and assembly enables customised solutions for you: from customer-specific labels to individual product housings, to special cable lengths.
