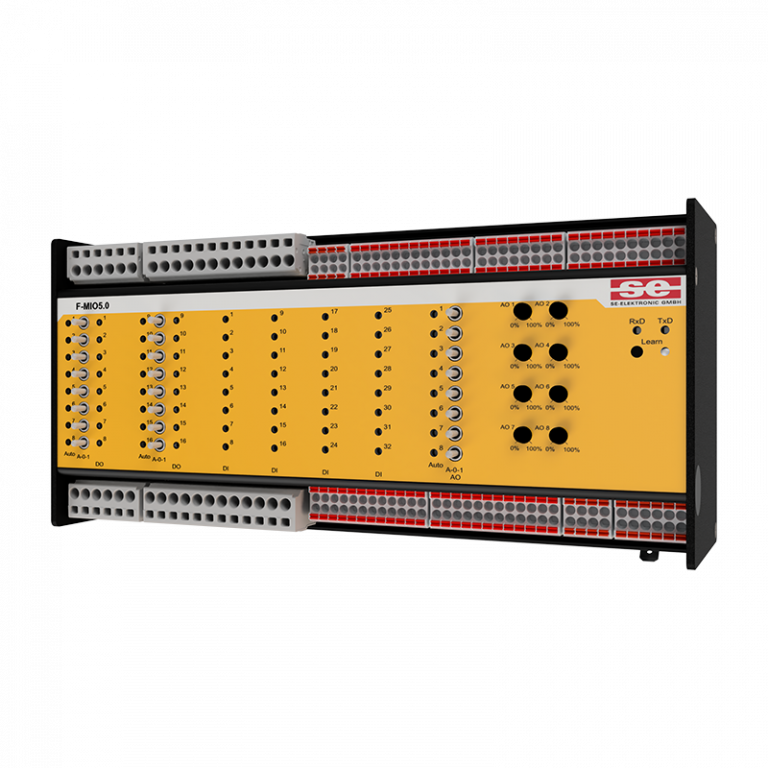

Digital and analogue input and output module, F-MIO5.0

Order no. G 12 83 80

Model nr: F-MIO5.0

Share this product

Description
Additional information

Description

Universal digital, analogue, input and output module with manual control panel and LEDs for visual feedback of the IOs.

Communication via F-BUS
4× digital outputs – relay contact (changeover): max. AC 250 V, 6 A each
12× digital outputs – relay contact normally open (NO): each max. AC 250 V, 6 A
32× digital inputs
24× digital inputs; 24V-OUT for DI
Pluggable connection terminals
Firmware update via F-Bus possible
8× analogue inputs
8× analogue outputs
6× analogue inputs (4-wire)
4× analogue inputs (2-wire)
Manual switch with Auto-OFF-ON switching position for DO
Manual switch including setpoint encoder for AO
Separate data point strip (analogue/digital)
Fast data updating through event-oriented communication

Robust metal housing, industrial design for top-hat rail mounting.

Additional information

Voltage supply/Spannungsversorgung	AC 24 V ± 10 %, 50 …60 Hz, DC 24 V ± 20 %
Max. power consumption/Leistungsaufnahme	AC 22 VA, DC 15 W
Self-consumption/Eigenverbrauch	AC 5 VA without load, DC 3 W without load
Dimensions/Maße	229 × 108.5 × 74.3 (length × width × height (installation depth) in mm)
Operation temperature/Einsatztemperatur	0 …+50 °C
Weight/Gewicht	1050 g
Protection/Schutzart	IP20
Housing/Gehäuse	aluminum, deep black RAL 9005
