Description

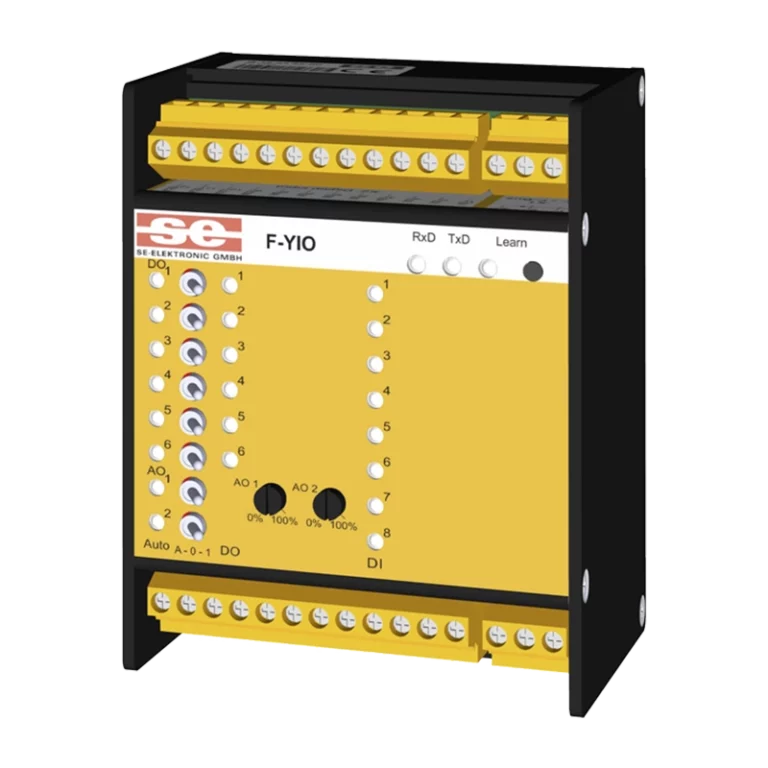

Digital and analog input and output module for F-bus.
- 2× analog outputs DC 0 …10 V
- 6× digital outputs – relays, normally open potential free 250 V, max. 5 A, AC1
- 8× digital inputs AC 12 …24 V, DC 15 …36 V, potential free or potential loaded
- 2× voltage output DC 24 V unstabilized (unloaded up to approx. 36 V possible)
- Manual switch with switch position Auto-OFF-On
- Pluggable connection terminals
- Controlling, programming and feedback is effected via the F-bus (2-wire)
- Automatic parameter transfer after address assignment
- Extended diagnostic options, error statistics, reporting
- Firmware update possible during operation via F-bus
- Up to 32 participants per line
- Own data point bar (analog/digital) for each participant
- Fast data update through event-oriented communication
Robust metal housing, industrial design for top hat rail mounting.
