Description

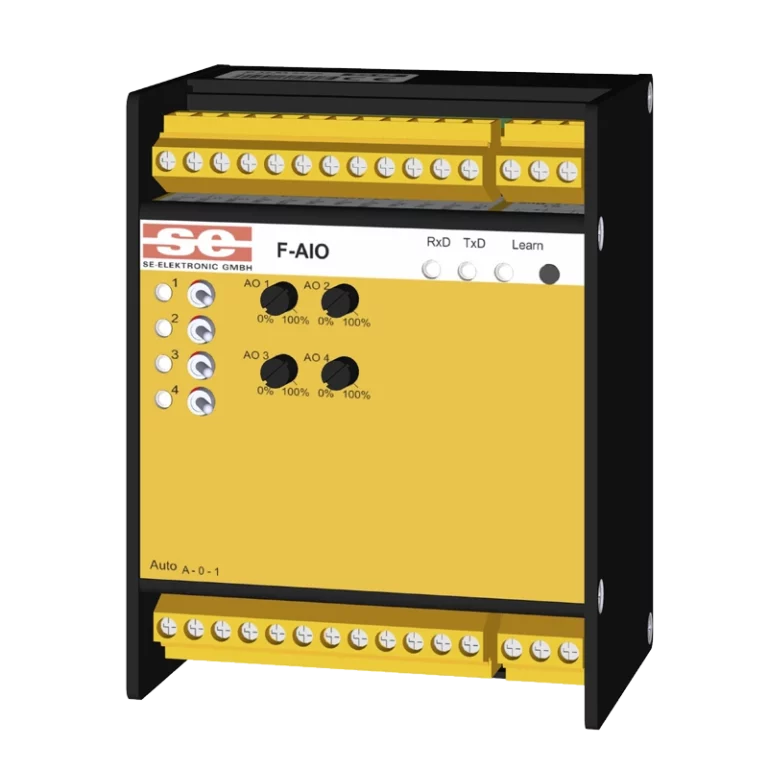

Digital and analog input and output module for F-bus with 6× AI as universal inputs for voltage, current*, NTC, PTC.
- 4× analog outputs DC 0 …10 V, max. 10 mA, freely configurable
- 4 x AO with integrated return
- 6× analog inputs DC 0 …10 V, resolution 16 bit
- 1× voltage output DC 24 V unstabilized, max. 150 mA for active sensors (unloaded up to approx. 36 V possible)
- 1× voltage output DC 10 V, max. 15 mA, reference voltage for potentiometer
- Manual switch with switch position Auto-OFF-On
- Pluggable connection terminals
- Controlling, programming and feedback is effected via the F-bus (2-wire)
- Automatic parameter transfer after address assignment
- Extended diagnostic options, error statistics, reporting
- Firmware update possible during operation via F-bus
- Up to 32 participants per line
- Own data point bar (analog/digital) for each participant
- Fast data update through event-oriented communication
Robust metal housing, industrial design for top hat rail mounting.
