Description

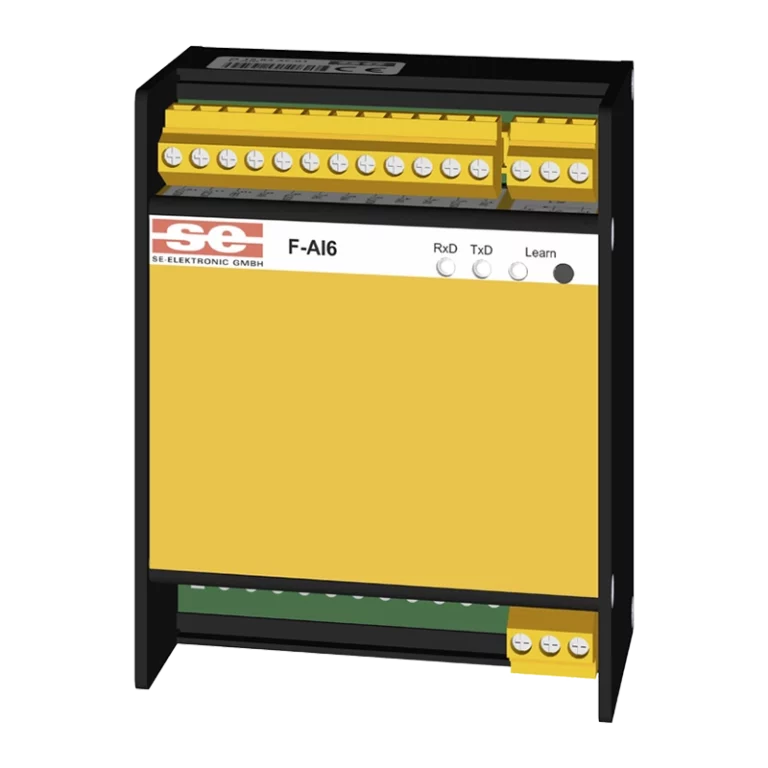

6-fold analog input module with 6× AI as universal inputs for voltage, current*, NTC, PTC. The characteristic curves of the individual sensors are stored in the software and can be freely selected for each input.
- 6× analog inputs DC 0 …10 V, resolution 16 bit
- 1× voltage output DC 24 V unstabilized, max. 150 mA for active sensors (unloaded up to approx. 36 V possible)
- 1× voltage output DC 10 V, max. 15 mA, reference voltage for potentiometer
- Pluggable connection terminals
- Selectable temperature units, e.g. Celsius, Fahrenheit, Kelvin …
- Controlling, programming and feedback is effected via the F-bus (2-wire)
- Automatic parameter transfer after address assignment
- Extended diagnostic options, error statistics, reporting
- Firmware update possible during operation via F-bus
- Up to 32 participants per line
- Own data point bar (analog/digital) for each participant
- Fast data update through event-oriented communication
Robust metal housing, industrial design for top hat rail mounting.
* Current measurement only with external load with 500 Ohm
