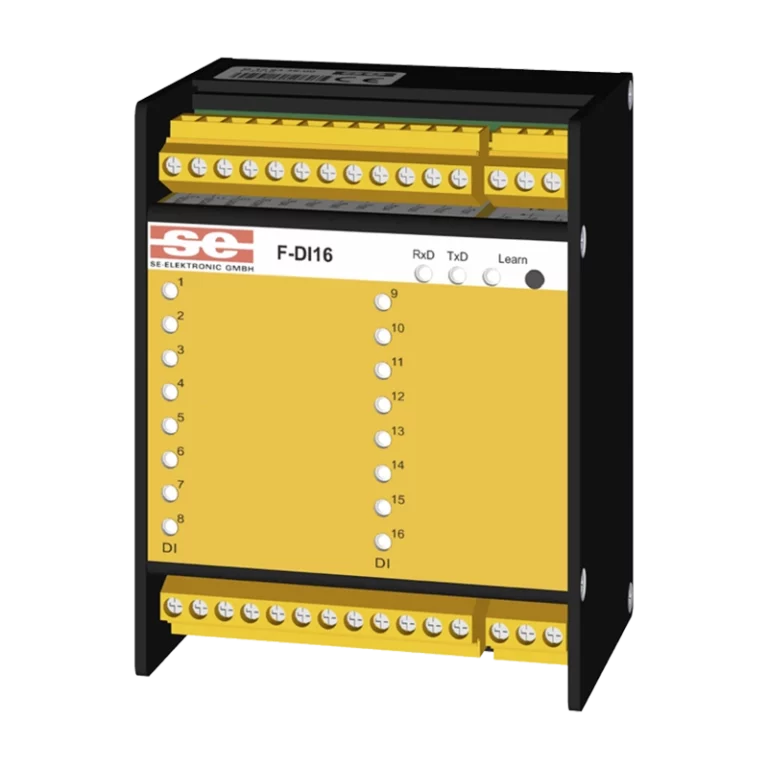

16-fold digital input module, F-device

Model nr: F-DI16

16-fold digital input module for F-bus.

Share this product

Description
Additional information

Description

16-fold digital input module for F-bus.

16× digital inputs AC 12 …24 V, DC 15 …36 V, potential free, detection of short pulses (> 100 milliseconds)
1× LED display per input
2× outputs DC 24 V (only for the digital inputs), total max. 150 mA unstabilized (unloaded up to approx. 36 V possible)
Pluggable connection terminals
Controlling, programming and feedback is effected via the F-bus (2-wire)
Automatic parameter transfer after address assignment
Extended diagnostic options, error statistics, reporting
Firmware update possible during operation via F-bus
Up to 32 participants per line
Own data point bar (analog/digital) for each participant
Fast data update through event-oriented communication

Robust metal housing, industrial design for top hat rail mounting.

Additional information

Voltage supply/Spannungsversorgung	AC 24 V ± 10 %, 50 …60 Hz, DC 24 V ± 20 %
Max. power consumption/Leistungsaufnahme	AC 5.0 VA, DC 2.0 W
Self-consumption without load	AC 1.5 VA, DC 0.7 W
Bus load	6 mA (F-bus)
Dimensions/Maße	84.5 × 108.5 × 77.0 (length × width × height (installation depth) in mm)
Operation temperature/Einsatztemperatur	0 …+50 °C
Weight/Gewicht	350 g
Protection/Schutzart	IP20
Housing/Gehäuse	aluminum, deep black RAL 9005
